Blazed Holographic Gratings

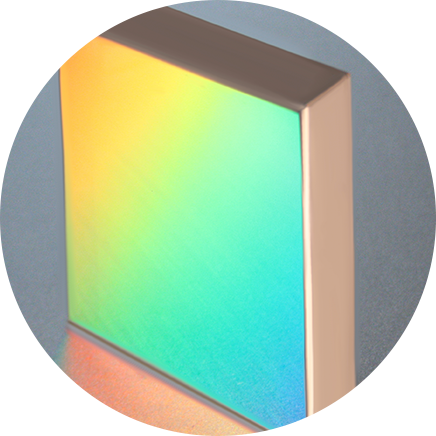

Spectrum Scientific is one of the few companies in the world to offer a blazed holographic diffraction grating. A blazed holographic grating has had the sinusoidal profile transformed into a ‘saw tooth’ profile. This saw tooth profile increases the efficiency of the diffraction grating over the wavelength region of interest without increasing the stray light.

Spectrum Scientific uses a proprietary blazing technique which creates a blazed grating that demonstrates considerably lower stray light with equivalent or better efficiency when compared to ion-etched gratings. Currently this technique is limited to a blaze region of 200-300mm.

Our stock gratings are available in 12.5 x 12.5 mm and 25 x 25 mm sizes but we can supply our standard range of gratings up to 90 x 90 mm or greater.

Spectrum Scientific offers a range of standard gratings. If we do not have a grating that meets your requirement, please contact our sales department as new gratings are manufactured on a regular basis.

Blazed Holographic Gratings
Blazed Holographic Gratings
Advanced Filter

Product Groove Density (g/mm)

Product Wavelength of Peak Efficiency (nm)

Product Wavelength Range (nm)

Product Coating

Product Dimensions (mm)

Product Lead Time

Product Apex Distance (inches)

Product Beam Deviation (arcsec)

Product Blaze Wavelength (nm)

Product Clear Aperture (mm)

Product Clear Aperture (%)

Product Deflection Angle (deg)

Product Deviation Angle (deg)

Product Dia. (mm)

Product Dispersion (nm/mm)

Product Effective Fl (mm)

Product F Nbr

Product Lα (mm)

Product Lβ (mm)

Product Parent Fl (mm)

Product Peak Efficiency (%)

Product Size (mm)

Product Spectrum Length (mm)

Product Substrate

Product Surface Accuracy

ComparePart NumberProduct DescriptionPriceGroove Density (g/mm)Blaze Wavelength (nm)QuantityMore
Compare 1200-240-012 1200 g/mm, 240nm Blazed Holographic Grating, 12.5 x 12.5 x 6mm $125 1200 240
Part Number: 1200-240-012
Price: $125
Groove Density (g/mm)1200
Blaze Wavelength (nm)240
Peak Efficiency (%)74%
Wavelength Range (nm)190-650
CoatingAluminum
Size (mm)12.5 x 12.5 x 6
Lead Time2-4 Wks
Hide Details
Compare 1200-240-025 1200 g/mm, 240nm Blazed Holographic Grating, 25 x 25 x 6mm $185 1200 240
Part Number: 1200-240-025
Price: $185
Groove Density (g/mm)1200
Blaze Wavelength (nm)240
Peak Efficiency (%)74%
Wavelength Range (nm)190-650
CoatingAluminum
Size (mm)25.0 x 25.0 x 6
Lead Time2-4 Wks
Hide Details
Compare 123-260-012 123 g/mm, 260nm Blazed Holographic Grating, 12.5 x 12.5 x 6mm $128 123 260
Part Number: 123-260-012
Price: $128
Groove Density (g/mm)123
Blaze Wavelength (nm)260
Peak Efficiency (%)80%
Wavelength Range (nm)190-600
CoatingAluminum
Size (mm)12.5 x 12.5 x 6
Lead Time2-4 Wks
Hide Details
Compare 123-260-025 123 g/mm, 260nm Blazed Holographic Grating, 25 x 25 x 6mm $185 123 260
Part Number: 123-260-025
Price: $185
Groove Density (g/mm)123
Blaze Wavelength (nm)260
Peak Efficiency (%)80%
Wavelength Range (nm)190-600
CoatingAluminum
Size (mm)25.0 x 25.0 x 6
Lead Time2-4 Wks
Hide Details
Compare 1440-250-012 1440 g/mm, 250nm Blazed Holographic Grating, 12.5 x 12.5 x 6mm $125 1440 250
Part Number: 1440-250-012
Price: $125
Groove Density (g/mm)1440
Blaze Wavelength (nm)250
Peak Efficiency (%)75%
Wavelength Range (nm)190-550
CoatingAluminum
Size (mm)12.5 x 12.5 x 6
Lead Time2-4 Wks
Hide Details
Compare 1440-250-025 1440 g/mm, 250nm Blazed Holographic Grating, 25 x 25 x 6mm $185 1440 250
Part Number: 1440-250-025
Price: $185
Groove Density (g/mm)1440
Blaze Wavelength (nm)250
Peak Efficiency (%)75%
Wavelength Range (nm)190-550
CoatingAluminum
Size (mm)25.0 x 25.0 x 6
Lead Time2-4 Wks
Hide Details
Compare 1800-230-012 1800 g/mm, 230nm Blazed Holographic Grating, 12.5 x 12.5 x 6mm $125 1800 230
Part Number: 1800-230-012
Price: $125
Groove Density (g/mm)1800
Blaze Wavelength (nm)230
Peak Efficiency (%)66%
Wavelength Range (nm)190-425
CoatingAluminum
Size (mm)12.5 x 12.5 x 6
Lead Time2-4 Wks
Hide Details
Compare 1800-230-025 1800 g/mm, 230nm Blazed Holographic Grating, 25 x 25 x 6mm $185 1800 230
Part Number: 1800-230-025
Price: $185
Groove Density (g/mm)1800
Blaze Wavelength (nm)230
Peak Efficiency (%)66%
Wavelength Range (nm)190-425
CoatingAluminum
Size (mm)25.0 x 25.0 x 6
Lead Time2-4 Wks
Hide Details
Compare 2322-300-012 2322 g/mm, 300nm Blazed Holographic Grating, 12.5 x 12.5 x 6mm $125 2322 230
Part Number: 2322-300-012
Price: $125
Groove Density (g/mm)2322
Blaze Wavelength (nm)230
Peak Efficiency (%)81%
Wavelength Range (nm)200-1100
CoatingAluminum
Size (mm)12.5 x 12.5 x 6
Lead Time2-4 Wks
Hide Details
Compare 2322-300-025 2322 g/mm, 300nm Blazed Holographic Grating, 25 x 25 x 6mm $185 2322 300
Part Number: 2322-300-025
Price: $185
Groove Density (g/mm)2322
Blaze Wavelength (nm)300
Peak Efficiency (%)81%
Wavelength Range (nm)200-1100
CoatingAluminum
Size (mm)25.0 x 25.0 x 6
Lead Time2-4 Wks
Hide Details
Compare 240-240-012 240 g/mm, 240nm Blazed Holographic Grating, 12.5 x 12.5 x 6mm $125 240 240
Part Number: 240-240-012
Price: $125
Groove Density (g/mm)240
Blaze Wavelength (nm)240
Peak Efficiency (%)81%
Wavelength Range (nm)190-500
CoatingAluminum
Size (mm)12.5 x 12.5 x 6
Lead Time2-4 Wks
Hide Details
Compare 240-240-025 240 g/mm, 240nm Blazed Holographic Grating, 25 x 25 x 6mm $185 240 240
Part Number: 240-240-025
Price: $185
Groove Density (g/mm)240
Blaze Wavelength (nm)240
Peak Efficiency (%)81%
Wavelength Range (nm)190-500
CoatingAluminum
Size (mm)25.0 x 25.0 x 6
Lead Time2-4 Wks
Hide Details
Compare 2400-250-012 2400 g/mm, 250nm Blazed Holographic Grating, 12.5 x 12.5 x 6mm $125 2400 250
Part Number: 2400-250-012
Price: $125
Groove Density (g/mm)2400
Blaze Wavelength (nm)250
Peak Efficiency (%)73%
Wavelength Range (nm)190-800
CoatingAluminum
Size (mm)12.5 x 12.5 x 6
Lead Time2-4 Wks
Hide Details
Compare 2400-250-025 2400 g/mm, 250nm Blazed Holographic Grating, 25 x 25 x 6mm $185 2400 250
Part Number: 2400-250-025
Price: $185
Groove Density (g/mm)2400
Blaze Wavelength (nm)250
Peak Efficiency (%)73%
Wavelength Range (nm)190-800
CoatingAluminum
Size (mm)25.0 x 25.0 x 6
Lead Time2-4 Wks
Hide Details
Compare 2880-240-012 2880 g/mm, 240nm Blazed Holographic Grating, 12.5 x 12.5 x 6mm $125 2880 240
Part Number: 2880-240-012
Price: $125
Groove Density (g/mm)2880
Blaze Wavelength (nm)240
Peak Efficiency (%)68%
Wavelength Range (nm)200-500
CoatingAluminum
Size (mm)12.5 x 12.5 x 6
Lead Time2-4 Wks
Hide Details
Compare 2880-240-025 2880 g/mm, 240nm Blazed Holographic Grating, 25 x 25 x 6mm $185 2880 240
Part Number: 2880-240-025
Price: $185
Groove Density (g/mm)2880
Blaze Wavelength (nm)240
Peak Efficiency (%)68%
Wavelength Range (nm)200-500
CoatingAluminum
Size (mm)25.0 x 25.0 x 6
Lead Time2-4 Wks
Hide Details
Compare 300-250-012 300 g/mm, 250nm Blazed Holographic Grating, 12.5 x 12.5 x 6mm $125 300 250
Part Number: 300-250-012
Price: $125
Groove Density (g/mm)300
Blaze Wavelength (nm)250
Peak Efficiency (%)84%
Wavelength Range (nm)190-700
CoatingAluminum
Size (mm)12.5 x 12.5 x 6
Lead Time2-4 Wks
Hide Details
Compare 300-250-025 300 g/mm, 250nm Blazed Holographic Grating, 25 x 25 x 6mm $185 300 250
Part Number: 300-250-025
Price: $185
Groove Density (g/mm)300
Blaze Wavelength (nm)250
Peak Efficiency (%)84%
Wavelength Range (nm)190-700
CoatingAluminum
Size (mm)25.0 x 25.0 x 6
Lead Time2-4 Wks
Hide Details
Compare 3600-250-012 3600 g/mm, 250nm Blazed Holographic Grating, 12.5 x 12.5 x 6mm $125 3600 250
Part Number: 3600-250-012
Price: $125
Groove Density (g/mm)3600
Blaze Wavelength (nm)250
Peak Efficiency (%)69%
Wavelength Range (nm)190-550
CoatingAluminum
Size (mm)12.5 x 12.5 x 6
Lead Time2-4 Wks
Hide Details
Compare 3600-250-025 3600 g/mm, 250nm Blazed Holographic Grating, 25 x 25 x 6mm $185 3600 250
Part Number: 3600-250-025
Price: $185
Groove Density (g/mm)3600
Blaze Wavelength (nm)250
Peak Efficiency (%)69%
Wavelength Range (nm)190-550
CoatingAluminum
Size (mm)25.0 x 25.0 x 6
Lead Time2-4 Wks
Hide Details
Compare 4200-250-012 4200 g/mm, 250nm Blazed Holographic Grating, 12.5 x 12.5 x 6mm $125 4200 250
Part Number: 4200-250-012
Price: $125
Groove Density (g/mm)4200
Blaze Wavelength (nm)250
Peak Efficiency (%)67%
Wavelength Range (nm)140-455
CoatingAluminum
Size (mm)12.5 x 12.5 x 6
Lead Time2-4 Wks
Hide Details
Compare 4200-250-025 4200 g/mm, 250nm Blazed Holographic Grating, 25 x 25 x 6mm $185 4200 250
Part Number: 4200-250-025
Price: $185
Groove Density (g/mm)4200
Blaze Wavelength (nm)250
Peak Efficiency (%)67%
Wavelength Range (nm)140-455
CoatingAluminum
Size (mm)25.0 x 25.0 x 6
Lead Time2-4 Wks
Hide Details
Compare 600-240-012 600 g/mm, 240nm Blazed Holographic Grating, 12.5 x 12.5 x 6mm $125 600 240
Part Number: 600-240-012
Price: $125
Groove Density (g/mm)600
Blaze Wavelength (nm)240
Peak Efficiency (%)83%
Wavelength Range (nm)190-550
CoatingAluminum
Size (mm)12.5 x 12.5 x 6
Lead Time2-4 Wks
Hide Details
Compare 600-240-025 600 g/mm, 240nm Blazed Holographic Grating, 25 x 25 x 6mm $185 600 240
Part Number: 600-240-025
Price: $185
Groove Density (g/mm)600
Blaze Wavelength (nm)240
Peak Efficiency (%)83%
Wavelength Range (nm)190-550
CoatingAluminum
Size (mm)25.0 x 25.0 x 6
Lead Time2-4 Wks
Hide Details

Please complete our Request Information form or contact our sales team to discuss your specific requirements.
