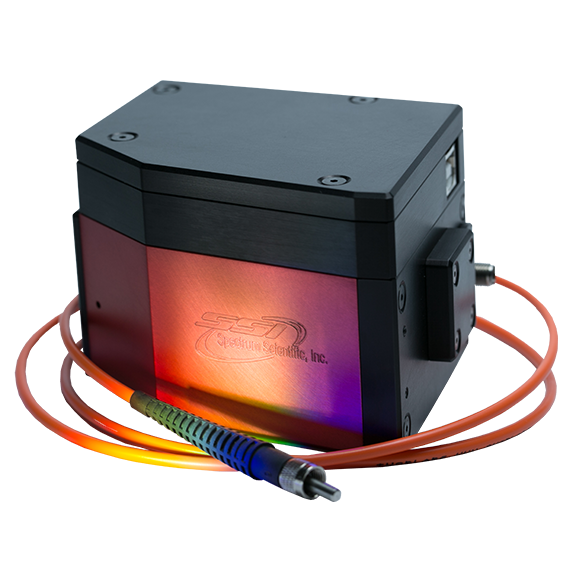

Spectrum Scientific’s UV-470-151 is a complete spectrograph unit incorporating an aberration corrected concave holographic grating and a Hamamatsu S11151-2048 CCD detector to give outstanding performance over the spectral range 190-850 nm.

For OEM applications you can select your slit size or order the UV-470 without the driver board.

Advanced Filter

Product Groove Density (g/mm)

Product Wavelength of Peak Efficiency (nm)

Product Wavelength Range (nm)

Product Coating

Product Dimensions (mm)

Product Lead Time

Product Apex Distance (inches)

Product Beam Deviation (arcsec)

Product Blaze Wavelength (nm)

Product Clear Aperture (mm)

Product Clear Aperture (%)

Product Deflection Angle (deg)

Product Deviation Angle (deg)

Product Dia. (mm)

Product Dispersion (nm/mm)

Product Effective Fl (mm)

Product F Nbr

Product Lα (mm)

Product Lβ (mm)

Product Parent Fl (mm)

Product Peak Efficiency (%)

Product Size (mm)

Product Spectrum Length (mm)

Product Substrate

Product Surface Accuracy

ComparePart NumberProduct DescriptionPriceLead TimeQuantityMore
Compare UV-470-151 UV-470-151 Spectrometer $5495 2-4 Wks
Part Number: UV-470-151
Price: $5495
Lead Time2-4 Wks
Grating Type470 g/mm aberration corrected concave grating.
Focal Length70mm
Spectral Range190-850 nm
Resolution1.0 to 1.5 nm @ 190-850 m
F Nbr2.0
Signal to Noise1600:1
Stray Light @ 340nm<0.07%
Stray Light @ 435nm<0.01%
Dispersion21.3 nm/mm
Slit Size15 μm standard. 25, 50 and 100 μm by request
Dynamic Range7200:1
Integration Time2.1 ms to 6.5 sec
DetectorS11151-2048 CCD
Pixel Size14 μm x 200 μm
Pixel Well Depth200,000 electrons
A/D Resolution16 bit
Fiber Optic InputSMA 905, 0.22 NA
InterfaceUSB 2.0
Power300 mA via USB
Dimensions96.5 x 72.5 x 63.5 mm
Weight1.09 lbs (0.5 kg)
Operating Temp0° to 55°C
Hide Details

Please complete our Request Information form or contact our sales team to discuss your specific requirements.
